Description

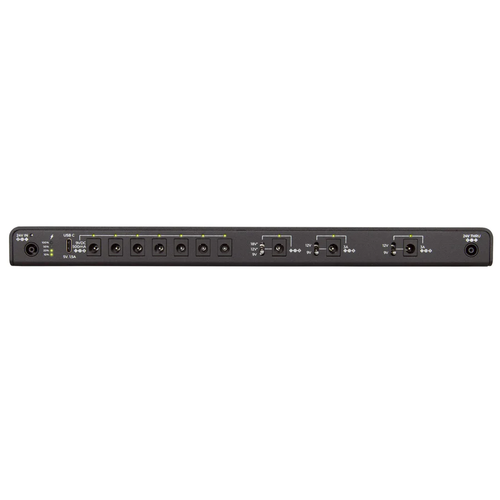

The Walrus Audio Canvas Power HP Plus is built for players running power-hungry rigs, think modelers like the Quad Cortex, multi-effects boards, and pedals that demand more than your average power brick can handle. This unit is a great fit if your setup includes both traditional analog pedals and digital processors. With two massive 3A outputs (switchable between 9V and 12V) plus seven isolated 9V outputs at 500mA each, the HP Plus handles everything from your boutique overdrives to the most demanding DSP-based gear.
Each output is fully isolated and filtered using modern switch-mode architecture. That means clean, quiet power with minimal noise, even when you're daisy-chaining across a complex setup. There's also a switchable 9/12/18V output and a 5V USB-C out for charging mobile devices or powering accessories. If your rig keeps growing, no worries-the HP Plus can be linked to other Canvas Power units via 24V, keeping your power modular without adding wall clutter.

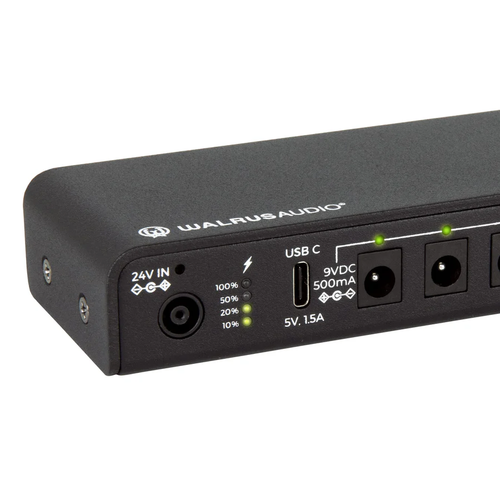

Despite its power, the unit's low-profile 1.2-inch height makes it easy to fit under most pedalboards. The onboard LED meter gives you a quick read on your total draw, while individual output LEDs show what's active. Walrus even includes a smart mix of cable types and lengths, with right-angled and ultra-short straight plugs that make cable routing cleaner. This is a professional-grade power solution that's built to scale with your setup.
Included:
- 1 x Canvas Power Supply
- 18" Straight to right angle DC Cable - Qty. 5
- 36" Straight to right angle DC Cable - Qty. 3
- 2.1mm Standard Polarity DC Cable (Yellow) - Qty. 2
- 2.1mm Reverse Polarity DC Cable (White) - Qty. 2
- 2.5mm Reverse Polarity DC Cable (Red) - Qty. 2
- 2.5mm Standard Polarity DC Cable (Blue) - Qty. 2
- 96W, 24V DC 4A power brick and country specific IEC cable
- L style mounting bracket set
- M3 Hex Key
Specifications:
- Dimensions: 312mm x 54mm x 25.5mm (12.28in x 2.12in x 1in)
- Weight: 426g (.93lbs)
- Outputs:
- 7 x 9VDC 500mA isolated outputs
- 1 x Variable 9V/12V/18V output
- 2 x Variable 9V or 12V outputs at 3A each
- 1 x 5V 1.5A USB-C charging output
- Power Brick Dimensions: 146mm x 57mm x 31.5mm (5.74in x 2.24in x 1.24in)
Sku: 900-1095
