Description

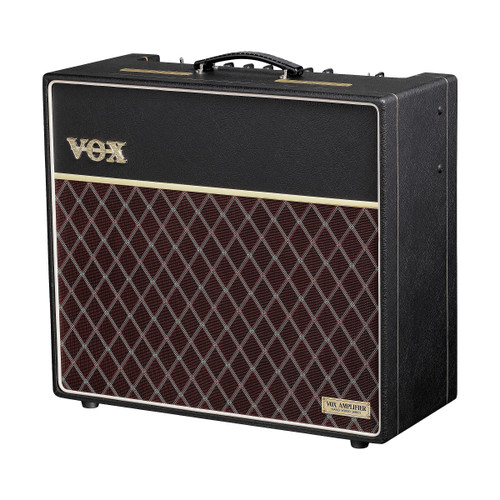

The Vox AC15 Hand-Wired resurrects one of the most iconic amplifiers with uncompromising vintage authenticity and modern performance upgrades. Painstakingly reconstructed from a 1963 "copper panel" reference unit, it faithfully recreates the signature EL84-driven chime, phase-inverter breakup, and dynamic voltage sag that defined the 1960s AC15. From hand-wired circuitry and custom transformers to a vintage-spec 12mm birch ply cabinet paired with Celestion Alnico Blue speaker, every component is designed to deliver the harmonics, resonance, and responsiveness that made the original a legend.
At the same time, the AC15 Hand-Wired adds contemporary features like a bypass-able master volume, transparent effects loop, and lush custom-voiced spring reverb. Its Normal and Top Boost channels provide the full spectrum of Vox tone, while the exclusive Boost switch introduces rich, vintage-style overdrive. Touch-sensitive, expressive, and meticulously voiced, the AC15 Hand-Wired offers both purists and modern musicians a true revival of the unmistakable Vox sound-ready for stage, studio, and every nuance of your playing.
Overview
-Power Output: 15 Watts
-Tubes: 5AR4, EL84 (2), 12AT7, 12AX7 (5)
-Speaker: 12" Celestion Alnico Blue

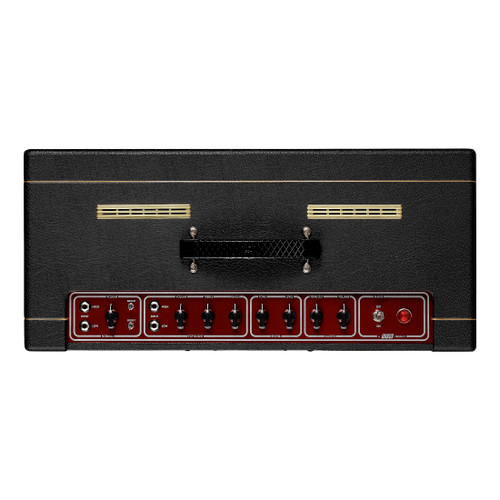

-Controls: Volume, Volume, Treble, Bass, Reverb Tone, Reverb Level, Tone Cut, Master
-Dimensions: 23.5" x 22.5" x 10.5"
-Weight: 50 lbs
Features
-Handwired on turret board
-Custom-made transformers
-Thinner cabinet for enhanced low end
-True spring reverb
-FX loop
